Description
This is a complete kit that includes everything you need for wheel assembly.
The Xtreme line is our strongest and most durable line of parts. The Xtreme mini V Wheel Kit Wheel is designed for strength and reliability. These can be used with the OpenRail System and V-slot extrusions.
Xtreme Mini V wheels are made from strong, clear polycarbonate material. This makes them resistant to compression and wear, and leads to better overall precision and strength for your builds.
The Xtreme Mini V wheels are a heavy-duty alternative to the Delrin Wheels, designed for applications like CNC Routers/Mills where force and weight are introduced into the system. So, if you're looking for a stronger wheel that can handle more weight, the Xtreme wheel is a great choice.
Many of these wheels could be added to a gantry to allow an even distribution of the load across them. These wheels are individually milled for consistent high precision and tolerance

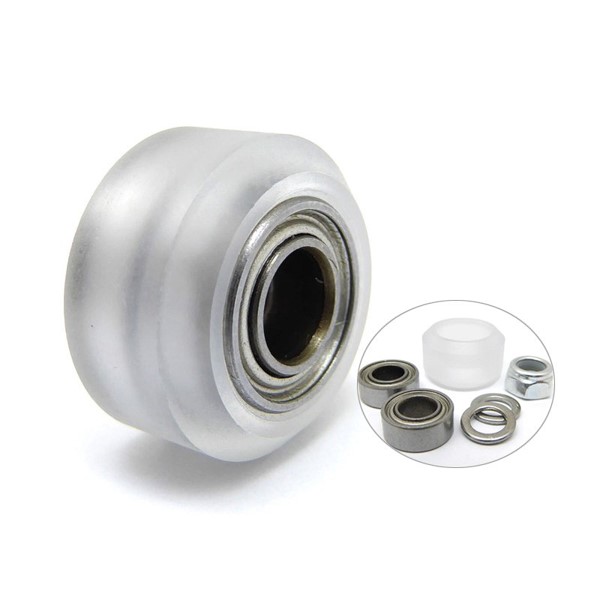

The Kit Includes:
| Item Name | Qty |
| Xtreme Mini Wheel (Only Wheel) | 1 |
| M5 Nylon Lock Nut | 1 |
| MR105ZZ Sealed Shielded Ball Bearing | 2 |
| Precision Shim T1x5.1x8mm | 2 |
Pro Tips:
- To assemble, first push one bearing into the wheel. Then using the screw as a guide push one of the two Mini shims and press the 2nd bearing in the wheel.
- The second mini-shim goes between the wheel and spacer to prevent the bearings from binding.
Please Note:
- You will require a set of M5 x 25mm screws, Spacers, Eccentric Spacers, and Plates to assemble a standard gantry. You may require longer screws for custom configurations.
- 2x Mini Shims are provided in each kit. One is placed in between the two bearings and the other between the spacer and wheel
