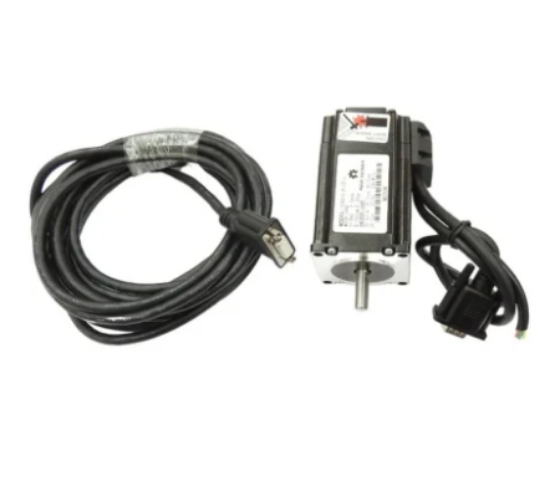

Nema 23 Closed Loop Stepper Motor 2.0Nm (Motor + encoder cable only)

Description

The Nema23 Closed-loop stepper motors are high-performance motors that will get the best performance from your stepper motor driven applications. With the ability to be fine-tuned in software, these motors can be used for applications requiring high precision. The torque of the motors is 2.0Nm.

Stepper motors are usually open-loop, which means they can lose steps and have reduced torque at high speeds. Closed-loop stepper motors don't have these issues, and can even accelerate quicker and run faster than their open-loop counterparts. Our stepper motors come with 5 meters of encoder cable to suit our machine kits up to 1500 x 1500mm machine kits, so you don't have to worry about joining cables inside the drag chain.

By default, programing the closed-loop motors is not required and can be used right out of the box.

These motors have the NEMA23 footprint and are a drop-in replacement for most CNC systems. Please note that an 8mm coupling is required.

Please note

• This listing is for the closed-loop stepper motor and 5m encoder cable only.

Specifications:

• Voltage: 2.1VDC
• Rated Current: 4.2A
• Motor Inductance: 1.8mH
• Holding Torque: 2.0Nm
• Encoder cable length: 5000m
• Motor cable length: 500mm
• Weight: 1.2kg

Use the Closed-loop Stepper Motor to drive:

• Nema23 compatible CNC machines
• Laser Cutters
• Plasma Cutters
• Robotic Actuators
• Automated Linear Actuators

Features of the Closed-loop Stepper Motor:

• High-performance and low inductance Closed-Loop Hybrid Stepper Motor.
• Comes with a handy 5m long encoder cable for ease of wiring.
• Low vibration and high efficiency.
• Built-in quadrature encoder. (1000 line encoder)
• High precision ensures precise carving in CNC applications

Motor Coil Wiring Diagram

Encoder Lead Pinout

Tips and Tricks

• The closed-loop stepper motors are best powered by a 36 or 48V power supply for higher speed and greater torque.
• The HSS57 Closed Loop Stepper Motor Driver is recommended to drive this stepper motor.
• For existing CNC builds, use these motors with 8x8mm jaw couplings for a drop-in replacement.
