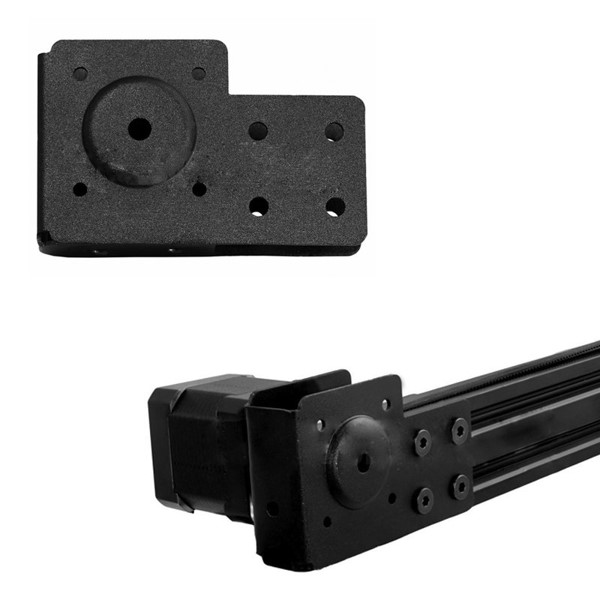

Linear Actuator End Mount Plate NEMA 17

Be the first to review this product

₹ 725.70 incl tax

These V-Slot Modular Actuator End Mounts create belt-driven linear actuators when used with V-Slot Aluminium Extrusion. By mounting both a Nema 17 Stepper Motor and a Smooth Idler Pulley, you can create a linear actuator for your specific project needs.

SKU: MP-EMP-N17

Availability: In stock

Qty:

Overview
Reviews
Contact Us

These V-Slot Modular Actuator End Mounts create belt-driven linear actuators when used with V-Slot Aluminium Extrusion. By mounting both a Nema 17 Stepper Motor and a Smooth Idler Pulley, you can create a linear actuator for your specific project needs.

You can create V-Slot actuators of varying lengths using any of the four available sizes of V-Slot.

One of the great features of these end mounts is the ability to mount to the ends as well as the bottom. This modular concept allows for the creation of many different machine designs.

The mounting holes on the End Mounts are 20mm apart allowing for easy connection to both the Mini V Plate and V-Slot extrusion. Use it with the double tee nut for a quick and simple installation.

So if you need a belt-driven linear actuator that can be made to custom lengths and with connection flexibility for a modular style build, then these end mounts are perfect for your project.

Specifications:

Size: T1.6*86.33*54.9
Material: Aluminium
Colour: Black Anodised
Used with Nema 17 Stepper Motors (sold separately)

Mounting Hardware (not included)

(8) Tee Nuts or (4) Double Tee Nuts
(8) 6mm M5 Low Profile Screws
(4) M3 30mm screws

Your name *

Your email *

Enquiry *

You can create V-Slot actuators of varying lengths using any of the four available sizes of V-Slot.

One of the great features of these end mounts is the ability to mount to the ends as well as the bottom. This modular concept allows for the creation of many different machine designs.

So if you need a belt-driven linear actuator that can be made to custom lengths and with connection flexibility for a modular style build, then these end mounts are perfect for your project.

Specifications:

Size: T1.6*86.33*54.9
Material: Aluminium
Colour: Black Anodised
Used with Nema 17 Stepper Motors (sold separately)

Mounting Hardware (not included)

(8) Tee Nuts or (4) Double Tee Nuts
(8) 6mm M5 Low Profile Screws
(4) M3 30mm screws
