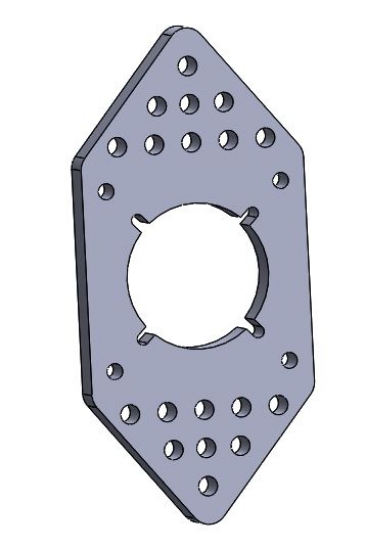

Gear Rack Motor Mount Plate

₹ 1,239.00 incl tax

Looking for a reliable and versatile motor mount plate? Our Gear Rack Motor Mount Plate is compatible with our NEMA 23 standard torque and NEMA 23 High Torque motors. It's a great choice for anyone looking for a durable and robust motor mount plate.

SKU: MP-RACK

Availability: Out of stock

Qty:

Overview
Reviews
Contact Us

Description

Robust, versatile, and modular.

This Gear Rack Motor Mount Plate is a versatile motor plate compatible with our NEMA 23 standard torque and NEMA 23 High Torque motors.

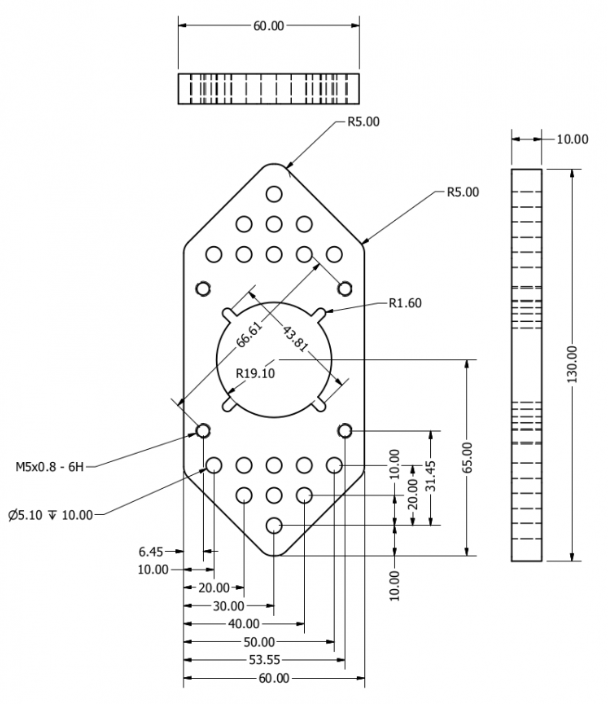

Specifications:

Material: 6063-T6 Aluminium
Finish: Black Anodized Finish
Thickness 10mm.

Pro Tips:

When you need a robust system where the motor shouldn’t be vibrating, use this plate with M5 screws and Sliding T-nuts to attach it to your V-Slot extrusion.
To use this plate as a pinion use a Thrust bearing with M5 screws.

Your name *

Your email *

Enquiry *

Description

Robust, versatile, and modular.

This Gear Rack Motor Mount Plate is a versatile motor plate compatible with our NEMA 23 standard torque and NEMA 23 High Torque motors.

Specifications:

Material: 6063-T6 Aluminium
Finish: Black Anodized Finish
Thickness 10mm.

Pro Tips:

When you need a robust system where the motor shouldn’t be vibrating, use this plate with M5 screws and Sliding T-nuts to attach it to your V-Slot extrusion.
To use this plate as a pinion use a Thrust bearing with M5 screws.
