Description
This kit includes everything you need for building a gantry system. With our easy-to-assemble parts, you'll have your gantry system up and running in no time. Don't miss out on this great deal! Save 20% OFF on Kits.
Our gantry kits are perfect for industrial and machine automation projects. With their precision and durability, they'll help you get the job done right. These gantry models are also commonly known as cartesian robots and are commonly employed in most industrial applications. These are considered for new automation due to their flexibility, efficiency, and ease of implementation. Our gantry kits are also modular and multi-purpose.
Our gantry systems are highly versatile and can be easily customized to meet your specific needs. For example, with our Y-axis actuator, you can choose to have a movable entire actuator or just a gantry cart, as shown in the images of our different models.
Our leadscrew linear actuators are employed in the gantry systems. They're more affordable and offer smooth, precise movement. Plus, they're sure to meet most of your project requirements.

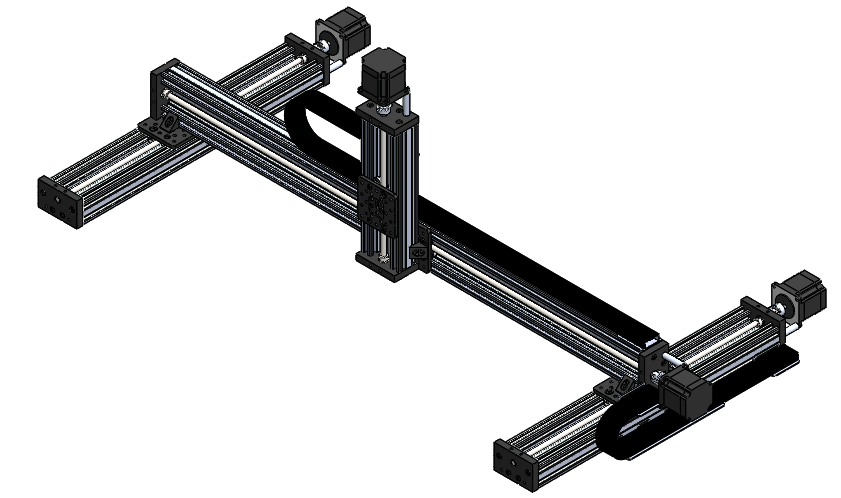

This XYZ-Double Rails Gantry system uses two linear actuators on the X-axis, a single linear actuator on the Y-axis, and one actuator on the Z-axis for movement. This system is perfect for a variety of applications. The length of the actuators is 500mm, 1000mm, and 250mm.
The kit includes
| Item Name | Qty |
| 90 Degree Corner Connector (V-Slot) | 4 |
| M5 Low Profile Screws– 8mm | 8 |
| Drop-In T-nuts V-Slot 20 | 4 |
| C-Beam Gantry Plate – Double Wide (for Z movement) | 1 |
| M5 Low Profile Screws– 8mm (for Z movement) | 8 |
| Cable Drag Chain Mounting Bracket | 4 |
| M5 Low Profile Screws– 8mm | 8 |
| Drop-In T-nuts V-Slot 20 | 8 |
| M4 Button Head Screws-8mm | 12 |
| Tee Nuts M4 | 12 |
| Cable Drag Chain Mounting Bracket-200 with Mounting Hardware | 3 |
| Cable Drag Chain -Interior Opening 15x30mm | 3 |
| C-Beam Actuator Kit -Double Wide Gantry-250mm | 1 |
| C-Beam Actuator Kit -Double Wide Gantry-500mm | 2 |
| C-Beam Actuator Kit -Double Wide Gantry-1000mm | 1 |
Our Gantry Models:
Refer to the knowledgebase tab in the footer for instructions on the assembly.
Additional related products:
- To run a gantry system, you need a stepper motor and controller.
- Our stepper motors are perfect for this purpose.
- Also check out our controllers, designed specifically for gantry systems.
- For additional mounting hardware, click here.
Need help choosing the right gantry system or accessories? We're here to assist you. We can also help with shop or machine automation. Contact us for more information.
Travel length calculations:
Effective travel length of a linear actuator= Length of C-beam (axis length) – 120mm (length of gantry plate)
Here's an example:
- If you select an X-axis actuator length of 1000mm and its effective travel distance of 880mm (1000-120).
- For an XY gantry system 500x500mm, the effective working area is 380x380mm. And for an XYZ gantry system 500x500x250mm, the effective working volume is 380x380x130mm.
Note: Although we aim to offer you an accurate length of the actuators, a small tolerance of +/- 2mm in the length is to be expected due to the cutting process.
Applications of gantry systems:
- General Automation
- Loading & Unloading
- Pick & Place Systems
- Lab Automation
- Assembly
- Dispensing & Filling
- Fastening & Screw Driving
- Camera Positioning & Scanning
- Indexing & Sorting
- Inspection
- Material Handling
- Packaging, Palletizing & Unitizing
- Printing & Plotting
Looking for shop or machine automation? Our team of experienced engineers can help. And if you need a CAD model of the gantry systems, just let us know. We're here to help you with all your automation needs.
