Description

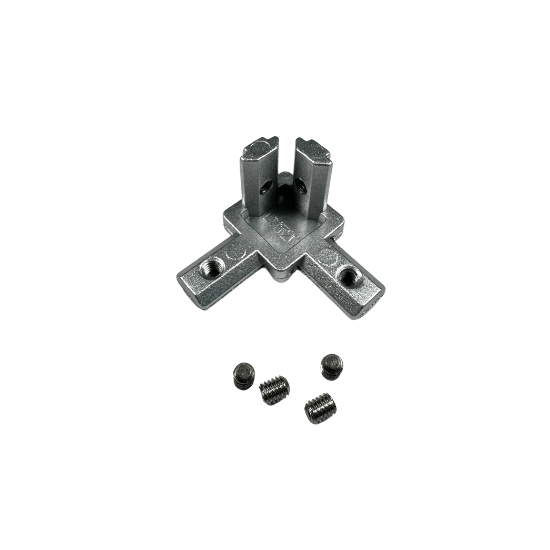

The three-dimensional 3-way corner bracket 2020 is the perfect solution to join three aluminum extrusions at 90 degrees. It makes an outstanding join of 3 pieces of extrusion at 90 degrees.
This item is perfect for when you are planning to build a new machine with steady joints and looking for a clean aesthetic-look. It is easy to use and takes less time when you are building your new machine. This item matches with the standard V-Slot and T-Slot that are commonly used by professionals or hobbyists in CNC machines, laser-Engraving Machines, 3D printers and anything that requires linear motion with one or more axis.
Specifications:
- Material: Cast Aluminium
- Colour: Silver or Black
- It comes with 4 x M5 grub screws.
- Designed to work with either T-Slot or V-Slot 2020 extrusions in its most diverse applications.
Pro Tips:
When you are considering using this 3-way corner bracket 2020 in your design, ensure that one of the three extrusions is its planned length minus 5mm. This will ensure a tight fit and avoid any gaps.
Example: To have an axis of 500mm length, your V-slot should be 495mm long.
Please Note: If you need extra strength on this join, please consider using this corner combined with 3 units of 90 degrees Angle Corner Connector (V-Slot), 1 pack of M5 Low Profile Screws, and 3 units of Sliding T-Nut.
