Description

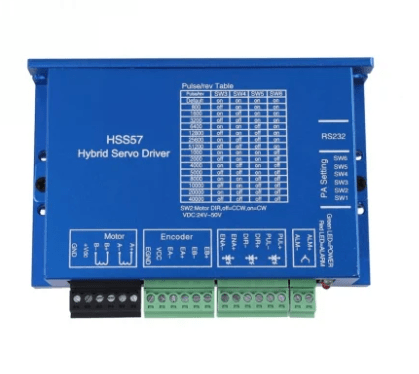

Our HSS57 Closed-loop stepper motor driver is an easy-to-use, reliable and professional stepper motor driver, which can control Nema23 and Nema24 closed-loop stepper motors. The driver is a digital stepper driver which utilizes advanced DSP technology as well as closed-loop vector control technology to get the best performance out of your closed-loop stepper motor. With our HSS57 driver, you can be sure to get precise and smooth motion from your closed-loop stepper motor. Motors driven by this driver produce lower noise and achieve higher top-end speed and better stability over their analog contemporaries. This driver features an all-metal assembly and a large heatsink for excellent heat dissipation.
The HSS57 stepper motor driver is ideal for use in CNC, robotics and hobbyist applications. It features speed and direction control for ease of use, and you can set its micro-step and output current via the 6 DIP switch array. All signal terminals are optoisolated, reducing the chances of interference/electrical noise.
For best performance, we recommend a 36V or 48V to use this driver with our Nema23 and Nem24 closed-loop stepper motors.
Features:
- Anti-Resonance features provide smooth operation through the RPM range
- Low noise and low vibration
- 32bit processor and advanced DSP control
- Closed-loop Vector control technology
- Multi-Stepping allows a low-resolution step input to produce a higher micro-step output for smooth system performance.
- Microstep resolutions are programmable via dip switch array, from full-step to 1/128 micro-stepping.
- Optically isolated inputs reduce noise.
- Alarm outputs for fault diagnosis. (Error codes available in the manual)
- Suitable for Nema23 and Nema24-sized closed-loop stepper motors.
- Support Pulse/Direction, CW/CCW, or RS232 control modes. (Step/Dir control recommended)
- Overvoltage and overcurrent protection.
- Durable all-metal body.
Specifications:
- Supply voltage: 24 to 50 VDC
- Output current: Up to 6.0A Peak (Load Dependent)
- Logic signal current: 7 to 20mA
- Pulse input frequency: 200 kHz
- Encoder Resolution (PPR): 1000
- Isolation resistance: 500 MΩ
- Operating temperature: 0 to 50 °C
- Operating Humidity: 40 to 90%RH
- Vibration: 5.9 m/s² Max
- Weight: Approx. 300 g
- Dimension: 118 x 75x 34 mm
Dimensions
Please note:
- The listing is for the driver only. For a complete solution, you may wish to check our closed-loop stepper motor bundles.
