C-beam XY Actuator Kit
About the kit:
The C-Beam XY Actuator Kit is a two-axis linear actuator driven by a lead screw. It includes everything you need for the build, and is available in 250mm, 500mm, 1000mm, and 1500mm sizes. In this actuator, the XL gantry carts are used for XY movement.
The kit includes:
| Product No | Product Name | Qty |
| 1 | C-Beam Gantry X/Y – XL Bundle | 1 |
| 2 | C-Beam End Mount Plate | 4 |
| 3 | 688ZZ Ball Bearing (BE-688ZZ) | 4 |
| 4 | Flexible Coupling－D20L25 6.35x8mm | 2 |
| 5 | Precision Shim T1x8.1x12mm | 4 |
| 6 | Shaft Lock Collar | 4 |
| 7 | M5 Low Profile Screws-20mm | 16 |
| 8 | M5 Low Profile Screws-55mm | 4 |
| 9 | Metric Aluminum Spacers – 40mm | 4 |
| 10 | Anti-Backlash Nut Block Gantry Hardware Pack | 2 |
| 11 | C-Beam 4080 -250/500/1000/1500mm | 2 |
| 12 | ACME/Metric 8mm Lead Screw TR8*8-For Cbeam length | 2 |
Open Package and Check All Components:
It's important to get organized before beginning any build. Unpack all parts of your kit and verify each piece against the Bill of Materials. If any pieces are missing, contact us right away.
Tools Required
- Allen keys set
- 8mm spanner/wrench
Follow Step by Step Assembly Instructions:

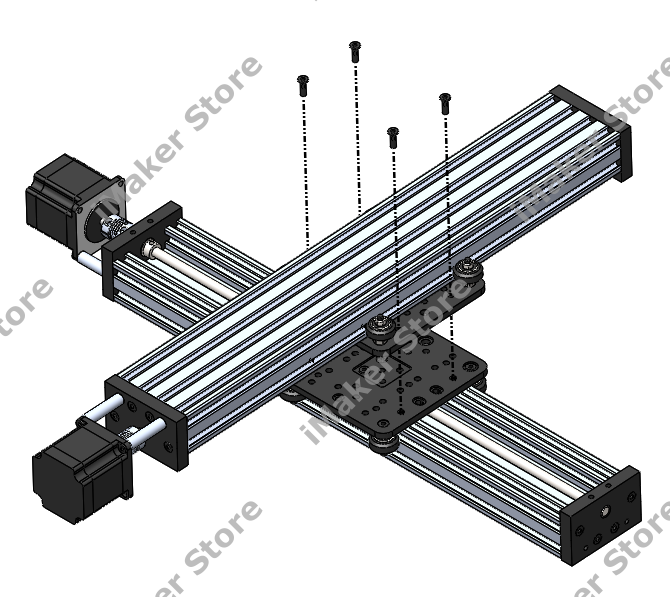

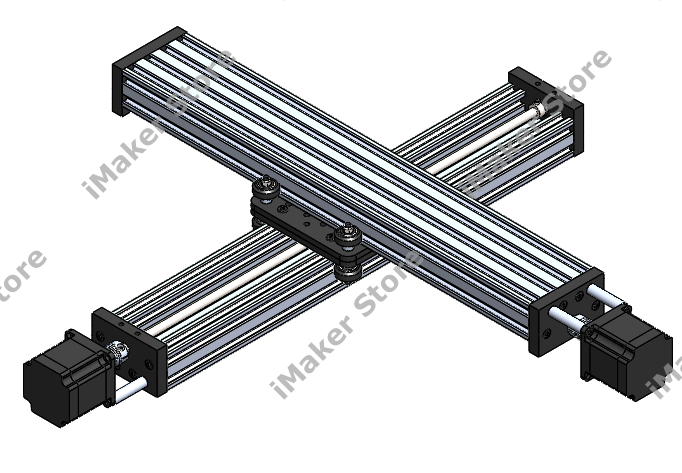

This XY Actuator is constructed by combining two separate C-beam actuators. Initially, build two C-beam actuators according to the guidelines given here. After that, assemble them using M5x20 screws as demonstrated in the images below.
