Description

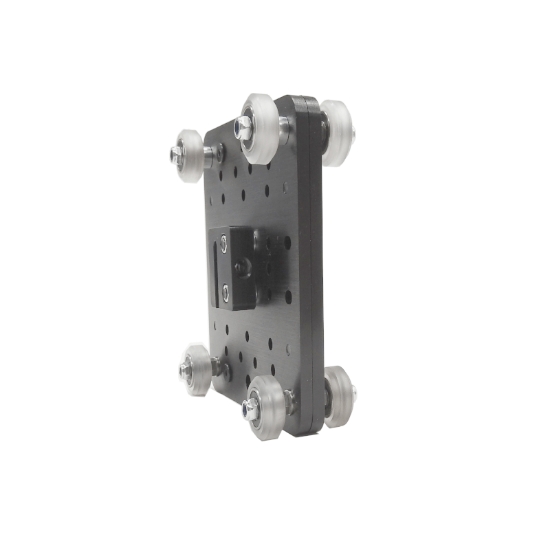

This Bundle includes everything you need to create a C-Beam Gantry X/Y- XL Cart. With the C-Beam Gantry Plate – XL, you can run the system along the C-Beam Linear Rails, with the wheels outside and the nut block on the inside. This gantry cart offers the XY movement. Refer to the knowledgebase tab in the footer for instructions on the assembly.
The C-Beam Gantry X/Y – XL Bundle is used to build a C-Beam XY Linear Actuator
Product Features
- This motion system is quick and easy to assemble.
- With multiple pre-drilled and tapped holes,
- It's ready to use with a Gantry for C-Beam Linear Rail.
- Designed for Lead Screw driven systems, it's a great choice for your next project.
- Finally, the recessed holes in plates allow for a flush marriage of plates.
The Bundle Includes:
Item Name | Qty |
C-Beam Gantry Plate – XL | 2 |
Derlin Solid V Wheel Kit | 8 |
Metric Aluminum Spacers – 6mm | 4 |
Mini Eccentric Spacers-8HEX*6mm -Stainless Steel | 4 |
M5 Low Profile Screws-27mm | 8 |
M5 Low Profile Screws-12mm | 8 |
Precision Shim T1x5.1x10mm | 8 |
