Gantry Kit
The Bundle Includes:
| Product No | Product Name | Qty |
| 1 | C-Beam Gantry Plate – Double Wide | 1 |
| 2 | Derlin Mini V Wheel Kit | 8 |
| 3 | Metric Aluminum Spacers – 6mm | 4 |
| 4 | Mini Eccentric Spacers-8HEX*6mm -Stainless Steel | 4 |
| 5 | M5 Low Profile Screws-25mm | 8 |
| 6 | Precision Shim T1x5.1x8mm | 8 |
Tools required:
- Allen keys
- 8mm spanner/wrench
Assembly Instructions:
- Let's get started on assembling the wheels first, refer to the wheel assembly instructions here.
- Then, insert the M5x25 screws into the corner holes.
- Lay the plate down on a flat surface (screw head butting against the flat surface) to assemble the remaining parts.

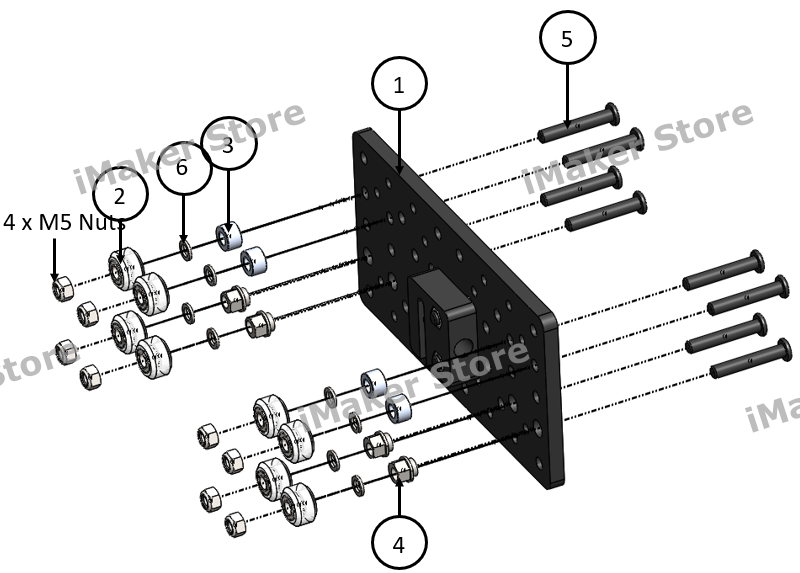

- Place the Aluminum spacers and eccentric spacers as shown in the drawing, making sure the rim of the eccentric spacer is properly inserted into the larger hole of the plate. This will allow the Cam mechanism to adjust the wheels' position when inserting the gantry bundle into the V-slot.
- Next, add the precision shims from the wheel kit.
- Lastly, insert the wheel kit and lock the wheels with lock nuts. And you're done!
- If you have a basic nut block/anti-backlash nut block, follow the nut block assembly steps to attach it to the gantry cart.

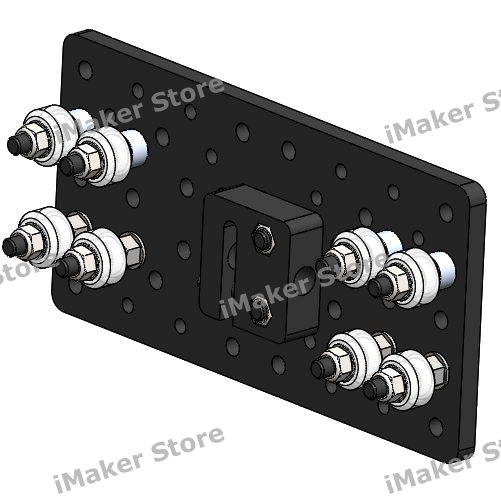

Below is the image after the Gantry assembly
