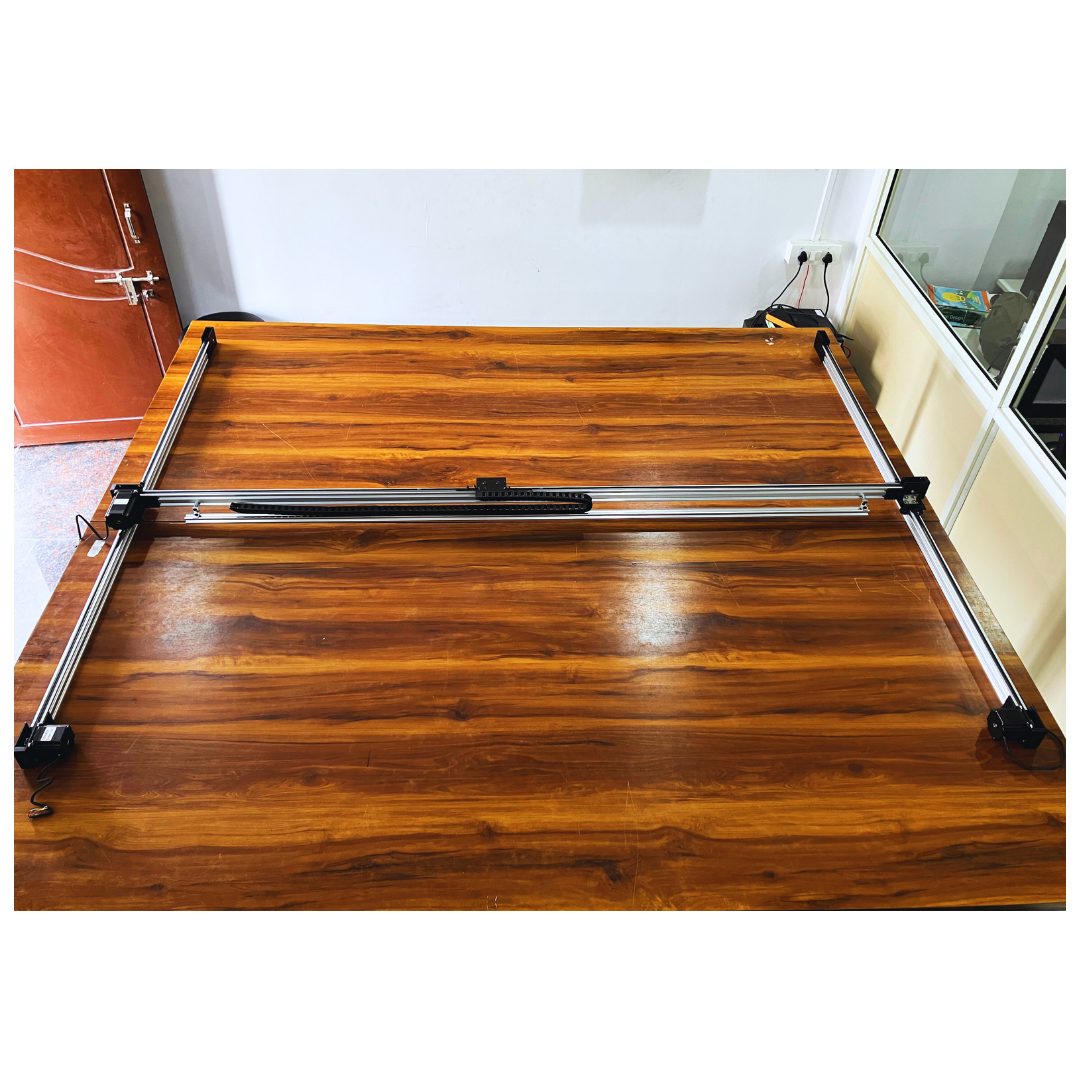

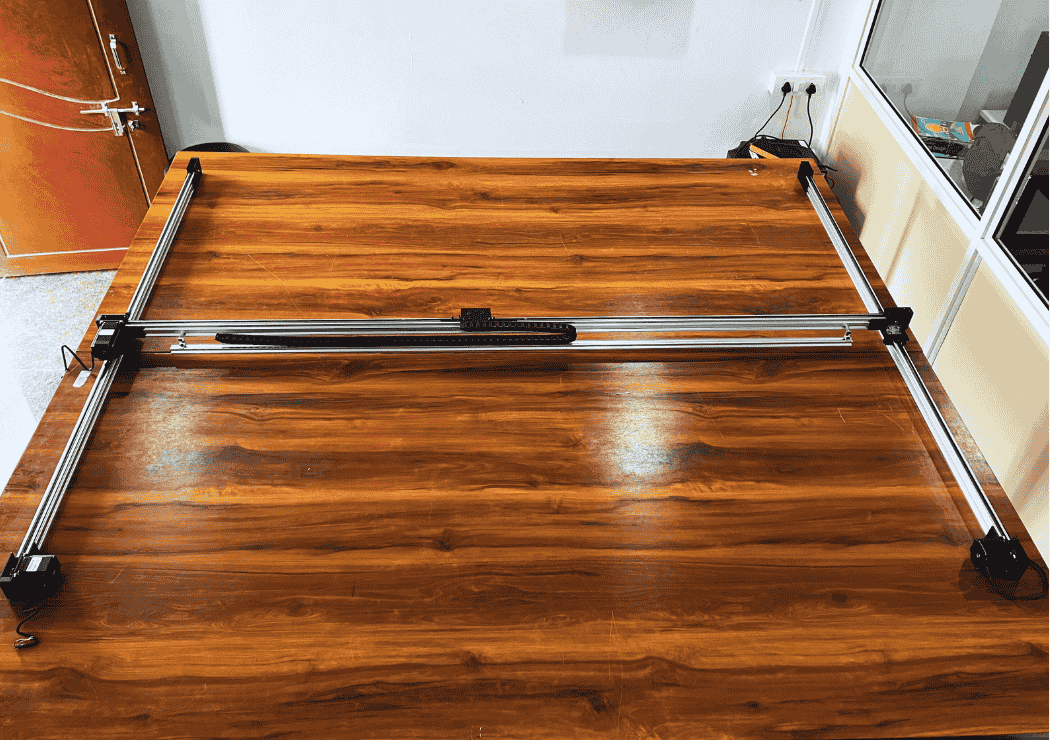

Belt Driven XY Gantry Robot-Cartesian

Be the first to review this product

High-Speed XY Gantry Robot – Precision & Reliability for Industrial Automation. Our high-speed Cartesian gantry robot delivers exceptional repeatability, accuracy, and smooth motion using reliable timing belts. Available in customizable lengths up to 1000×1000 mm with NEMA 17 or NEMA 23 stepper motors (larger sizes supplied with NEMA 23), this system is ideal for pick-and-place, CNC, drawing, inspection, and industrial automation applications. Equipped with a drag cable chain for neat and safe cable routing. 📩 Contact us for more details: contactus@imakerstore.com

SKU: KIT-GS-BELT-XY-0L0L

Overview
Reviews
Contact Us

XY Gantry Robot – High-Speed Cartesian Motion System

Our XY Gantry Robot is designed for applications demanding fast, accurate, and repeatable movements in a Cartesian (X–Y) motion setup. Built with a timing belt drive system, it ensures high-speed performance with low maintenance requirements, making it a reliable choice for industrial and laboratory environments.

Key Features

High Speed & Precision – Smooth motion with exceptional repeatability for accurate positioning.
Reliable Timing Belt Drive – Low-maintenance, high-performance transmission system.
Customizable Sizes – Available up to 1000×1000 mm working area with NEMA 17 or NEMA 23 stepper motors.
Scalable Design – For larger working areas, supplied with powerful NEMA 23 stepper motors for optimal torque.
Cable Management – Integrated drag cable chain keeps cables organized and safe during motion.
Durable Build – Rigid frame ensures stability and long service life in demanding conditions.

Applications

Pick-and-Place Robots – Fast, repeatable part handling for production lines.
CNC & Engraving Systems – Precise positioning for cutting, milling, and engraving.
Drawing & Plotting Robots – High-speed pen or tool movement for artistic and technical drawings.
Inspection Robots – Smooth scanning motion for camera-based inspection systems.
General Industrial Automation – Flexible platform for custom automated solutions.

Benefits

Flexible Integration – Works with multiple control systems and end-effectors.
High Productivity – Increased throughput without sacrificing accuracy.
Custom Engineering Available – Tailored sizes and motor configurations to suit your project.

📩 For orders and customization inquiries: contactus@imakerstore.com
