Belt Actuator Kits
Applicable to the below kits
- Belt Actuator Kit With V Slot 20mm Gantry-500mm
- Belt Actuator Kit With V Slot 20mm Gantry-1000mm
- Belt Actuator Kit With V Slot 20mm Gantry-1500mm

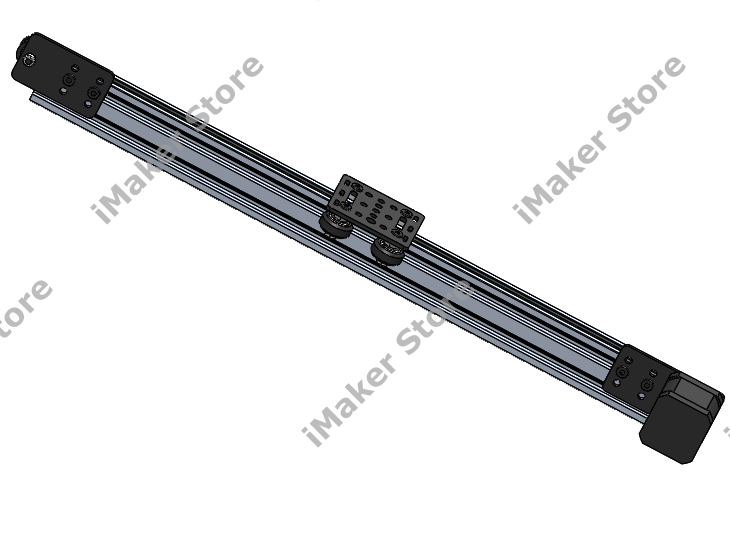

Note: This kit is very similar to the belt actuator kit as previously described, but with one major difference. The motor plate and pulley holder plates are replaced with a simple plate, refer to the below image. Everything else remains the same as previously described. For details assembly instructions, refer to Belt Actuator Kit With V-Slot 20mm Gantry Assembly.
Assembly instructions are the same as the Belt Actuator Kit With V-Slot 20mm Gantry Assembly.

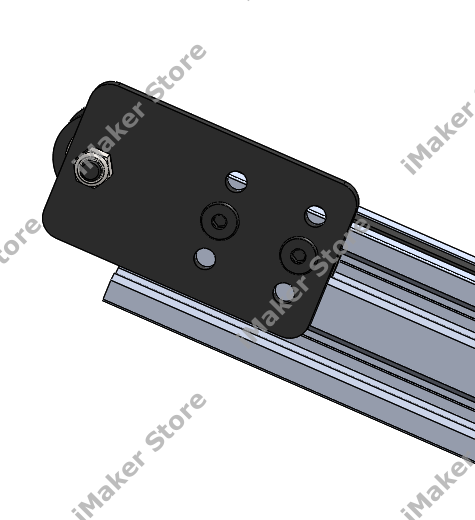

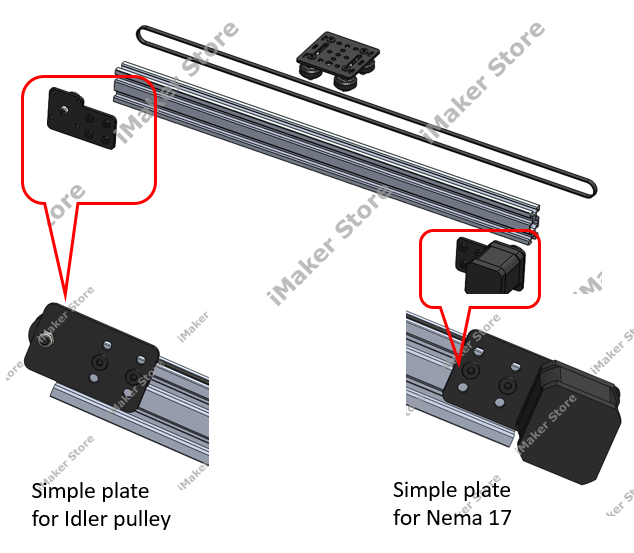

Simple plate at idler pulley end:

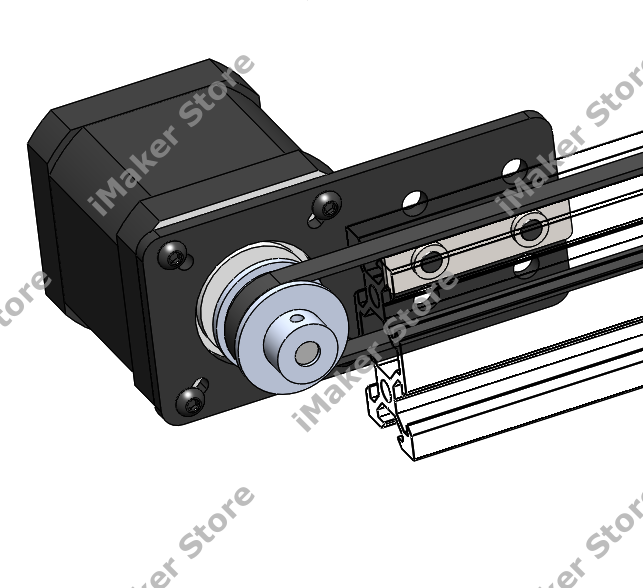

Simple plate at Nema 17 motor end:
