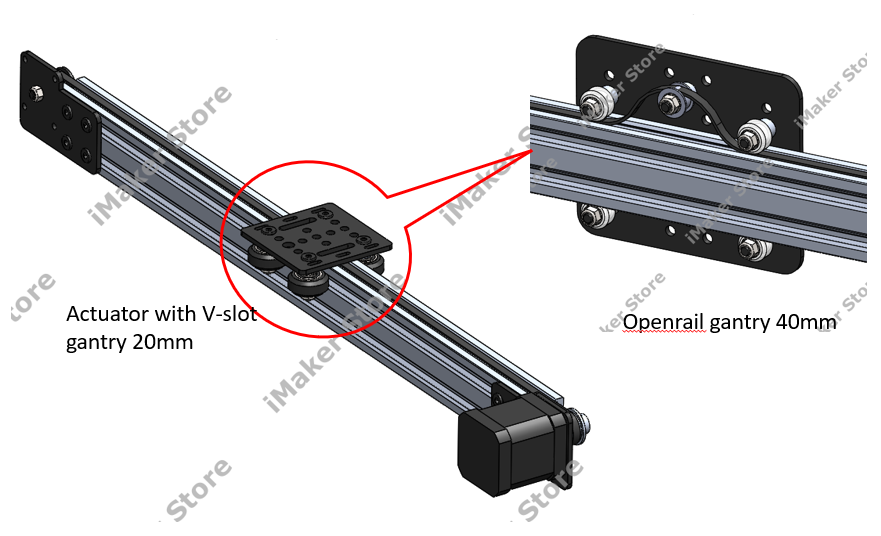

Note: Upgrade your actuator kit with an Openrail gantry 40mm! This kit is similar to the belt actuator kit, but has one major difference: a V slot 20mm gantry cart is replaced with an Openrail gantry 40mm. Follow the instructions to assemble your new kit and start enjoying its improved performance!
About the Kit:
The Belt Actuator Kit comes with the Openrail 40mm gantry for a large base and it provides smooth operation for a Gantry along a 20×40 V-Slot Linear Rail. It is both accurate and quick, ideal for industrial applications.
Unpack the Package and Check all Components
It's important to get organized before beginning any build. Unpack all parts of your kit and verify each piece against the Bill of Materials. If any pieces are missing, contact us right away.
Tools Required
- Allen keys set
- 8mm spanner/wrench
Important Pre-Assembly Notes
Before starting your build, we suggest taking a minute to read through the assembly guide so you can get an idea of how everything fits together. Pay close attention to each step and make sure you understand the instructions before continuing. Also, be mindful when attaching parts - if it feels like you're having to put a lot of force into it, stop, re-read the instructions, and try again. Don't over-tighten screws - doing so may strip the thread or head. If you have any questions about the build, don't hesitate to reach out to us. You can chat with us live on the store website or email us at contactus@imakerstore.com - we're here to help!
We value your time, that's why we ship our products with pre-assembled subassemblies like wheel kits and gantry carts to make your build process faster and simpler. Need help with our products? Don't hesitate to reach out - our team is ready to answer your questions. You can contact us via our live chat or email us at contactus@imakerstore.com. We look forward to hearing from you!
Follow the below steps for the linear actuator assembly

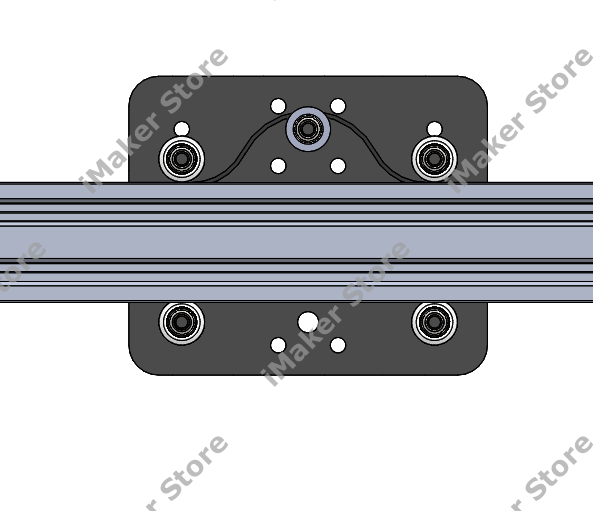

Step 1: Set up the Openrail gantry cart 40mm following the assembly steps available here. The assembly process stays the same, but the wheels for this gantry cart are miniature V wheels.
The remaining assembly instructions are the same as the Belt Actuator Kit With V-Slot 20mm Gantry Assembly.
