About the Belt actuator Kit:
The Belt Actuator Kit is equipped with the Mini V-slot gantry and provides smooth operation for a Gantry along a 20×40 V-Slot Linear Rail. It is both accurate and quick, ideal for industrial applications. There are size variations available, and the only differences between the sizes are the lengths of the belt and the Aluminum V-slot rail. All other components remain the same.
The Kit Includes:
| Product No | Item Name | Qty |
| 1 | NEMA 17 Steeper Motor | 1 |
| 2 | GT2 Timing Pulley 20T -ID5xW6mm | 1 |
| 3 | Metric Aluminum Spacers – 6mm | 5 |
| 4 | Metric Aluminum Spacers – 3mm | 1 |
| 5 | M3 Button Head Screws – 10mm | 4 |
| 6 | Delrin Smooth Idler Pulley Wheel Kit | 1 |
| 7 | M5 Low Profile Screw 25mm | 1 |
| 8 | M5 Low Profile Screws-8mm | 16 |
| 9 | Tee Nuts M5 | 16 |
| 10 | M5 Low Profile Screws-35mm | 1 |
| 11 | Nylon Insert Hex Lock Nut M5 | 1 |
| 12 | Linear Actuator End Mount Plate NEMA 17 | 2 |
| 13 | Cable Zip Ties– Pack of 10 | 1 |
| 14 | V-Slot Mini V Gantry Bundle | 1 |
| 15 | GT2 Open Timing Belt 2m/3m for 500/1000mm length | 2 |
| 16 | V-Slot 2040 – for 500/1000mm length | 1 |
Unpack the Package and Check all Components
It's important to get organized before beginning any build. Unpack all parts of your kit and verify each piece against the Bill of Materials. If any pieces are missing, contact us right away.
Tools Required
- Allen keys set
- 8mm spanner/wrench
Important Pre-Assembly Notes
Before starting your build, we suggest taking a minute to read through the assembly guide so you can get an idea of how everything fits together. Pay close attention to each step and make sure you understand the instructions before continuing. Also, be mindful when attaching parts - if it feels like you're having to put a lot of force into it, stop, re-read the instructions, and try again. Don't over-tighten screws - doing so may strip the thread or head. If you have any questions about the build, don't hesitate to reach out to us. You can chat with us live on the store website or email us at contactus@imakerstore.com - we're here to help!
We value your time, that's why we ship our products with pre-assembled subassemblies like wheel kits and gantry carts to make your build process faster and simpler. Need help with our products? Don't hesitate to reach out - our team is ready to answer your questions. You can contact us via our live chat or email us at contactus@imakerstore.com. We look forward to hearing from you!

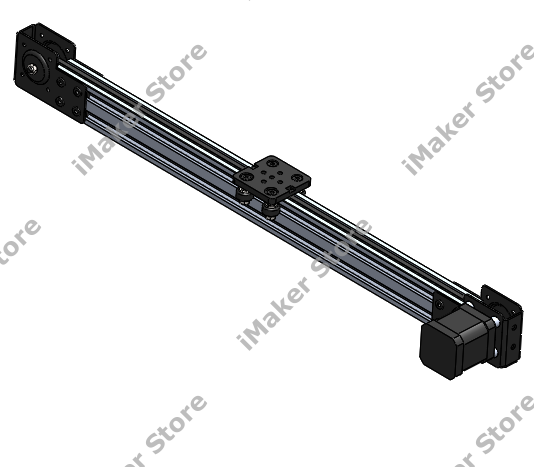

Follow the below steps for the linear actuator assembly

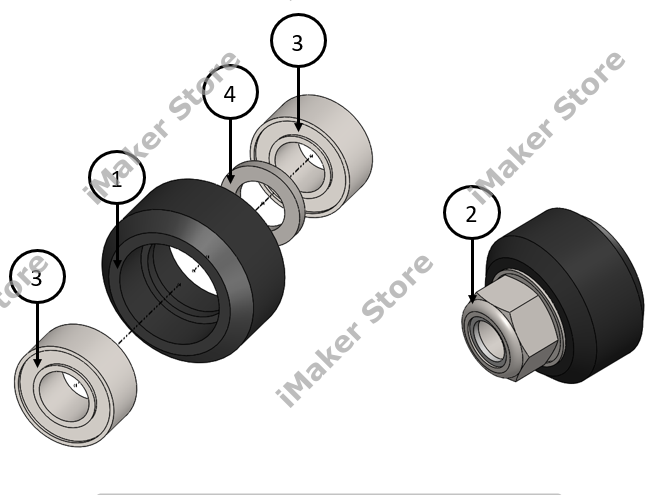

Step1: Wheel Assembly: Check assembly instructions here

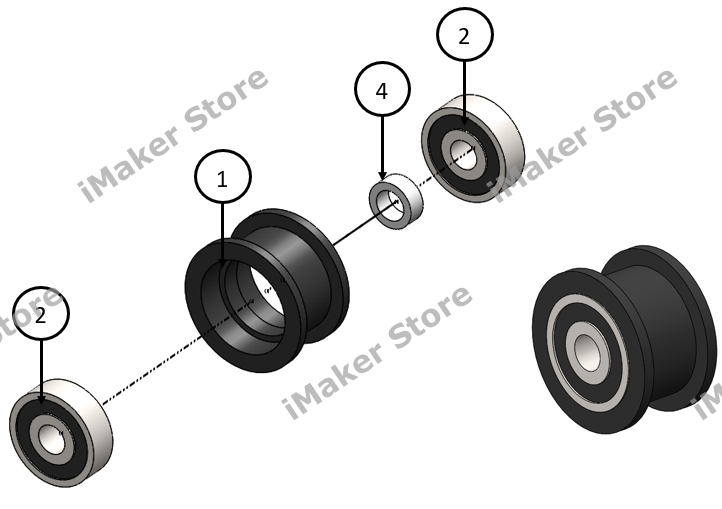

Step2: Pulley Wheel Assembly: Check assembly instructions here
Step3: Gantry Assembly: Check assembly instructions here

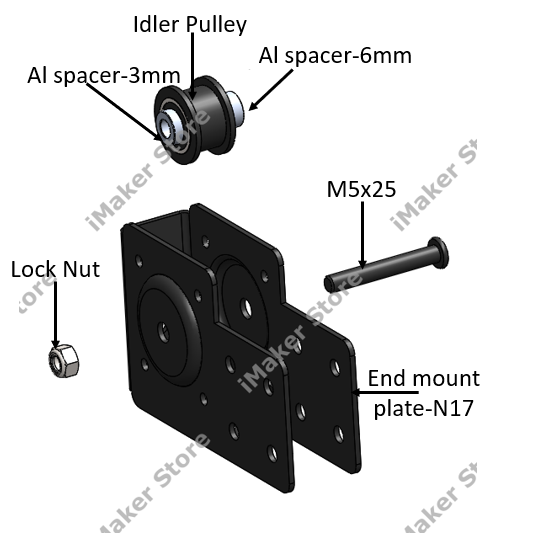

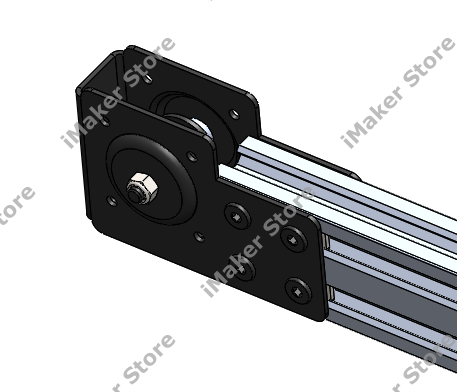

Step4: Idler pulley end plate assembly
It is easy to assemble the M5x8 screws and M5 tee nuts on the plate. However, do not tighten them as these are used for fixing the sub-assembly to the V-slot rail. The M5x25mm screw and M5 nylon lock nut are part of the Idler Pulley Wheel Kit.

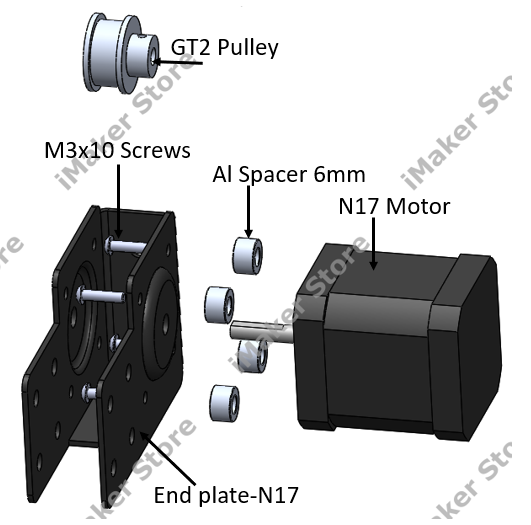

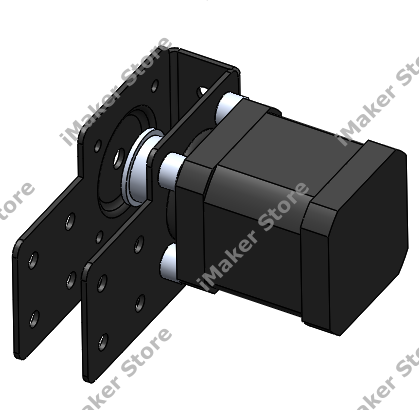

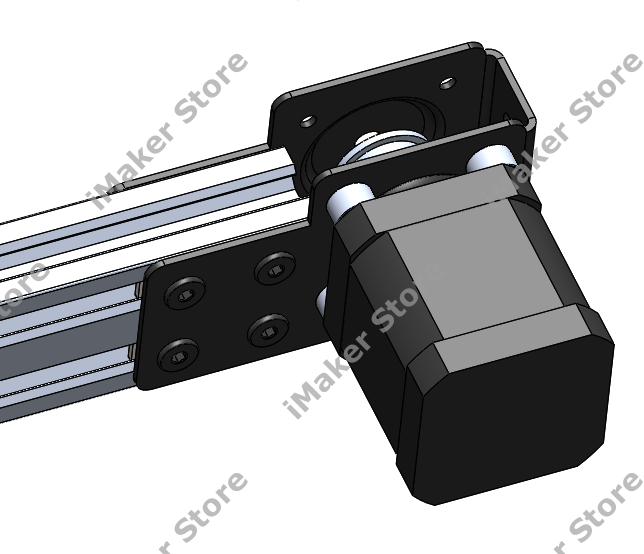

Step5: Motor end plate assembly

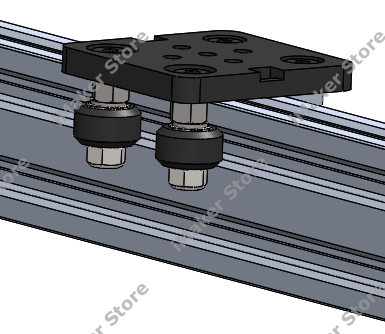

Step6: Attaching gantry cart to V-slot
Note: Make sure the gantry cart runs smoothly along the V-slot rail by adjusting the eccentric spacers.

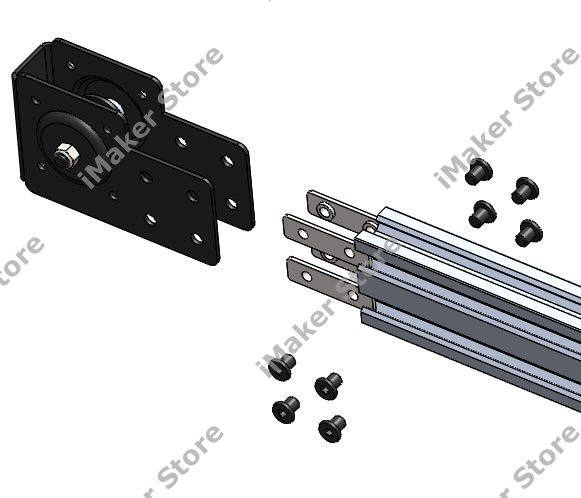

Step7: Fixing idler pulley end plate assembly to V-slot

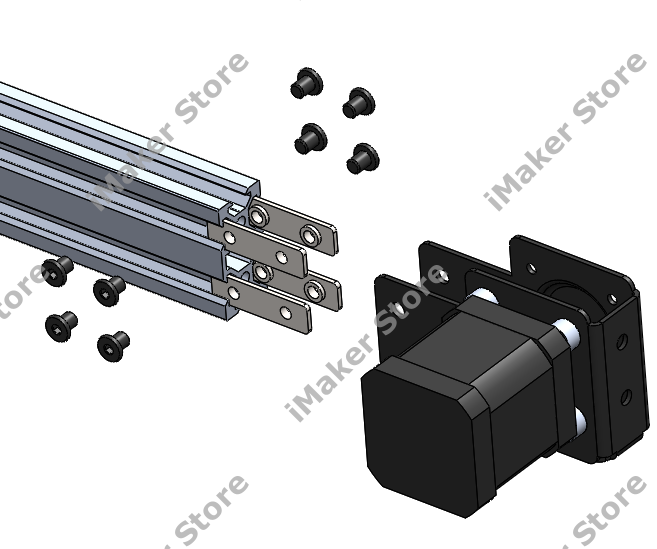

Step8: Fixing motor end plate assembly to V-slot
Step9: Attaching belt to the actuator
Follow this process for correct tensioning the GT2 Belt:
- Tighten the screws on one Actuator Pulley Plate to secure the Plate in position.
- Feed the Belt over the Pulleys and through the hollow center of the V-Slot.

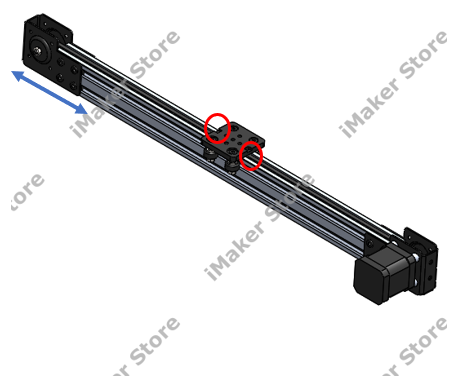

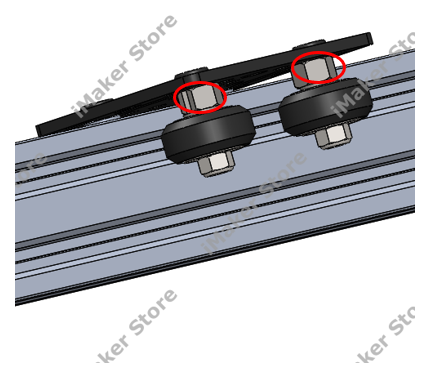

- Tie or Clamp the GT2 Belt on both sides (at the red-colored circles) of the Gantry using the zip ties/belt clamps, as shown in the above image.
- Pull the other Actuator Pulley Plate away (see the blue arrow) to Tension the GT2 Belt, and tighten the screws on the Plate while it is under tension
