Description
Ball screws are used in many applications where precision and repeatability are important, such as robotics, CNC machines, and linear actuators. They are up to 90% efficient and use ball bearings between the screw and nut, which drastically reduces backlash.
Due to the high mechanical efficiency of ball screws, the torque required to operate a ball screw is approximately 30% of conventional screw-driven transmission.
Specifications
- Ball Screw Length: 1000mm
- Ball Screw Diameter: 12mm
- Fabricating process: Rolled
Included

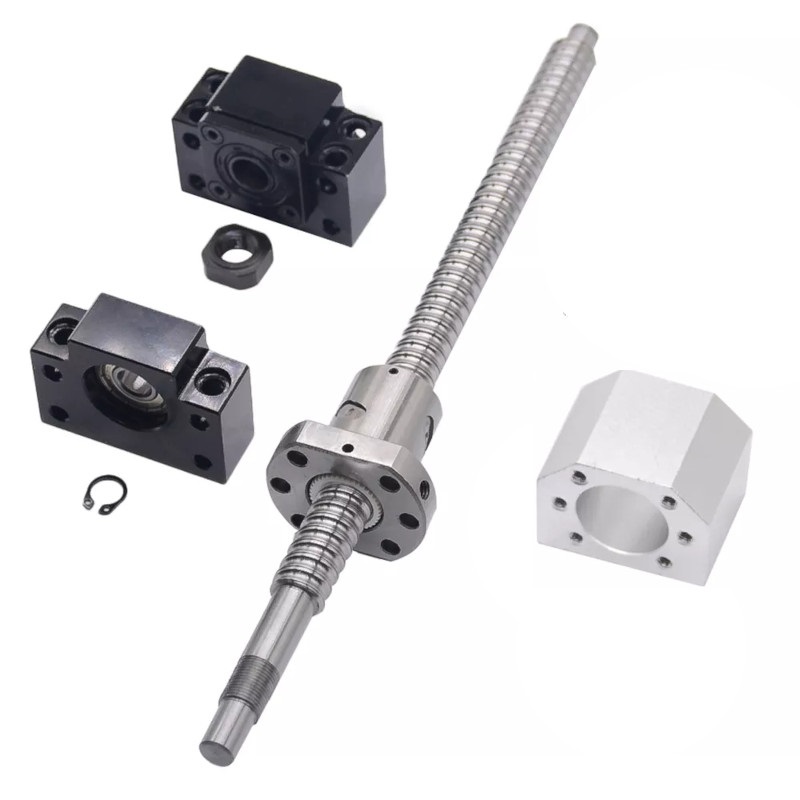

- 1000mm SFU1210 Ball Screw and Nut
- BF08 Floating Ball Screw Support with clip
- BK08 Fixed Ball Screw Support with a lock collar
- Ball Nut Housing
Please note:
- These ball screw kits do not include a coupling. We recommend our high-quality Jaw Couplings.
- This listing is for a 1000mm ball screw kit.
